- Cylinder Number: 2 cylinder
- Combustion Type: Direct injection
- Bore×Stroke: 100*105mm
- Displacement: 1.651L
- Cooling Way: Air cooled
- Usage: Construction machinery, agriculture machinery, generator set, water pump, marine

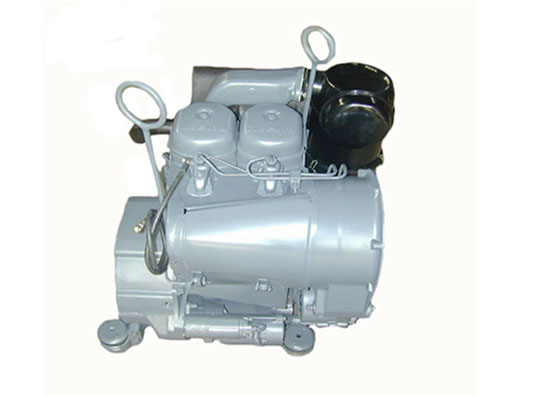

Deutz 2 cylinder diesel engine F2L511, power is from 11.5 kW to 23kW, Rated power is from 1500rpm to 3000rpm.Low fuel consumption, low maintaince costs and long life reduce the running costs. Widely used for construction machinery, generator set, water pump set, agricultural machinery and marine.
|
Model |
F2L511 |
|||||
|
Cylinder number |
2 |
|||||
|
Chamber type |
Direct injection |
|||||
|
Bore x stoke,mm |
100*105 |
|||||
|
Speed,r/min |
1500 |
1800 |
2000 |
2500 |
2800 |
3000 |
|
12-hour output rating (kw/hp) |
11.5/15.6 |
14.6/ 19.9 |
16.5/ 22.4 |
19.5/ 26.5 |
21/ 28.5 |
23/32 |
|
Cooling method |
Air cooled |
|||||
|
Starting manner |
Electric |
|||||
|
Net weight,kg |
190 |
|||||
|
Gross weight,kg |
230 |
|||||
|
Overall dimensions (L*W*H),mm |
518*525*709mm |
|||||
