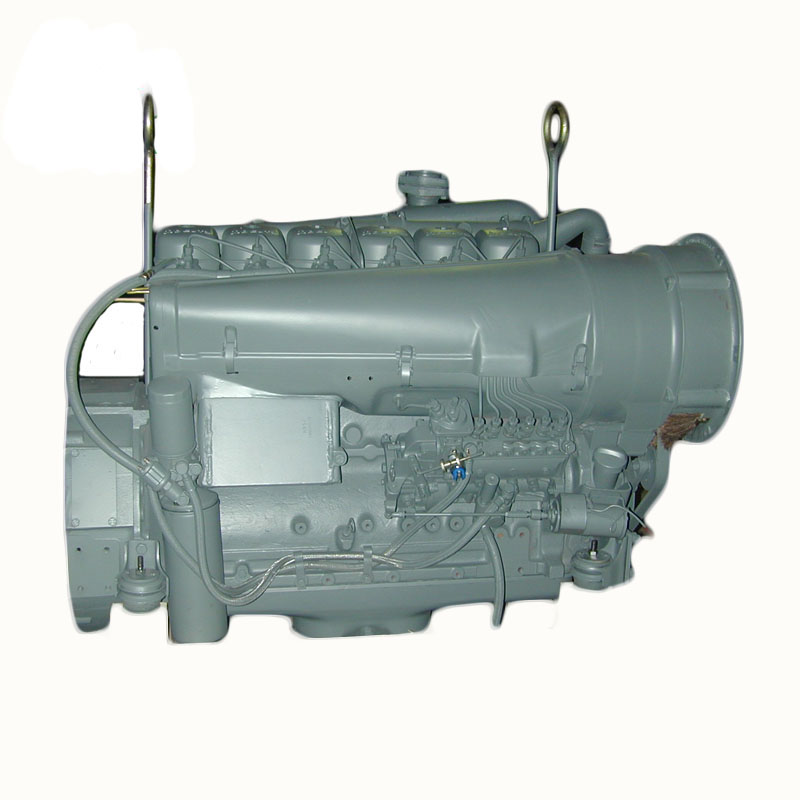

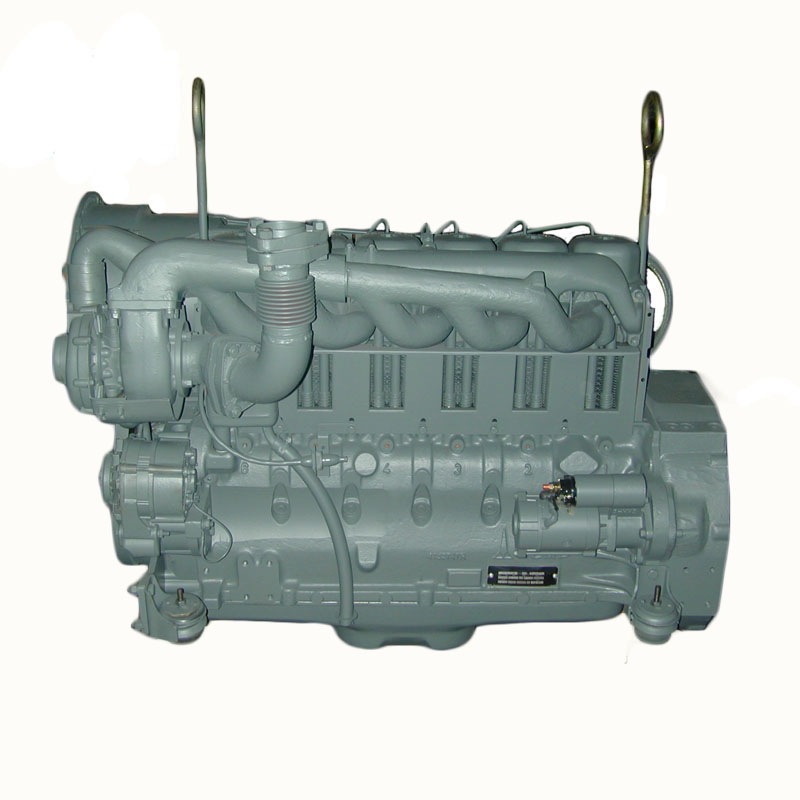

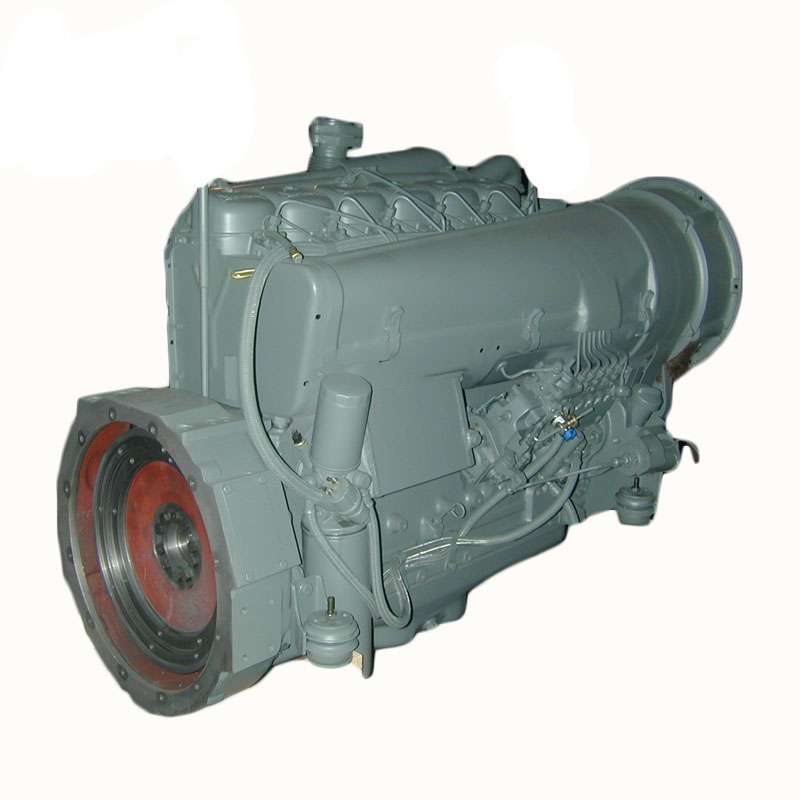

Deutz engine BF6L913
- Bore ×Stroke: 102mm×125mm
- Displacement: 6.128 L
- Compression Ration: 15.5: 1
- Cooling Way: Air cooled
Product Description:
Air-cooled 6-cylinder turbocharged in-line engine, Extremely compact design. High torque at low speeds.
Modular system with single cylinder arrangement and high degree of parts commonality. Customized component system
with many different peripheral parts. Cold-starting ability even under extreme climatic conditions.
Technical Data:
| In-line, 6Cylinder, 4 Cycle Diesel Engine | ||||||||
| Bore ×Stroke | 102mm×125mm | |||||||
| Displacement | 6.128 L | |||||||
| Compression Ration | 15.5: 1 | |||||||
| Cooling Way | Air cooled | |||||||
| Combustion system | Direct injection | |||||||
| Aspi ration | Turbocharged | |||||||
| Direction of rotation | Counterclockwise (face to flywheel end) | |||||||
| Fuel consumption ratio | 240.7g/kwh (limit value) | |||||||
| Oil consumption ratio | 2.04g/kwh (limit value) | |||||||
| Lubricant Capacity | 14.5 L | |||||||
| Net Weight | 550kg | |||||||
| Overall Dimension(L×W×H) | 1155mm×711mm×919mm | |||||||
| Useage | Power class | Power | Speed (rpm) | |||||
| 1500 | 1800 | 2000 | 2150 | 2300 | 2500 | |||
|
Construction equipment |
ISO 3046/1(IFN) (Highly intermittent) | P(kW) | 77 | 92 | 101 | 106 | 112 | 118 |
| P(HP) | 105 | 125 | 137 | 144 | 152 | 160 | ||
| ISO 3046/1(IFN) (Intermittent) | P(kW) | 74 | 88 | 96 | 100 | 104 | 109 | |
| P(HP) | 101 | 120 | 131 | 136 | 141 | 148 | ||
| ISO 3046/1(ICFN)(Continuous) | P(kW) | 70 | 82 | 90 | 96 | 99 | ||
| P(HP) | 95 | 111 | 122 | 131 | 135 | |||
| ISO 3046/1(ICXN)(Continuous) | P(kW) | 74 | 88 | |||||
| Genset | P(HP) | 101 | 120 | |||||
| Marine | ICXN | P(kW) | 70 | 82 | 90 | 96 | 99 | |
| P(HP) | 95 | 111 | 122 | 131 | 135 | |||
| I0FN | P(kW) | 106 | 112 | 118 | ||||
| P(HP) | 144 | 152 | 160 | |||||
