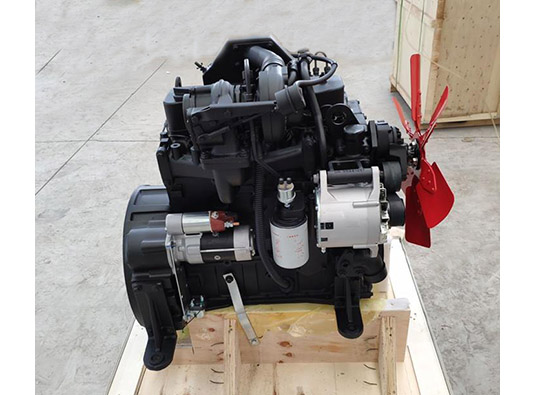

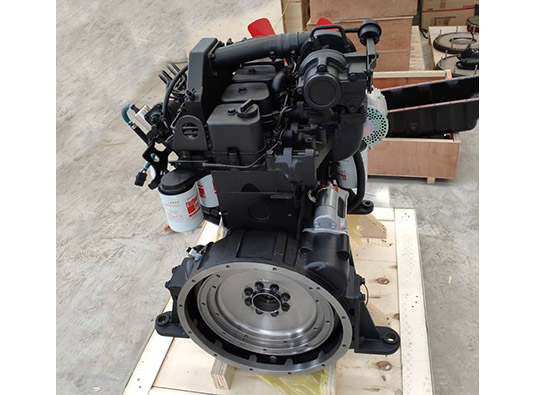

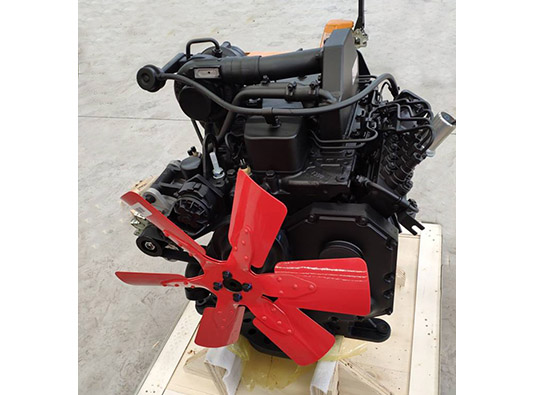

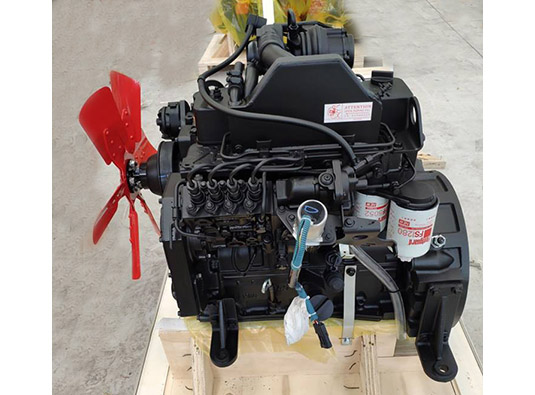

    Cummins 4BT series engine for industry
      • Brand: Cummins
      • Cooling way: Water cooled
      • Cylinder No.: 4 cylinder
      • Displacement: 3.9L
      • Usage: Industry
    Product Description:

    The Cummins diesel engine 4BT has the highest thermal efficiency (engine efficiency) of any practical internal or external combustion engine due to its very high expansion ratio and inherent lean burn which enables heat dissipation by the excess air. A small efficiency loss is also avoided compared to two-stroke non-direct-injection gasoline engines since unburned fuel is not present at valve overlap and therefore no fuel goes directly from the intake/injection to the exhaust. Low-speed diesel engines (as used in ships and other applications where overall engine weight is relatively unimportant) can have a thermal efficiency that exceeds 50%.

    Technical Data:
      Engine Model Rated power/speed Peak torque/speed Aspiration Emission Standard
    B  series    (4Cyls/3.9L) 4BTA3.9-C80 60kW/2200rpm 350N.m/1500rpm Turbocharged & intercooled TierⅠ
    4BTA3.9-C100 74kW/2200rpm 410N.m/1500rpm Turbocharged & intercooled TierⅠ
    4BTA3.9-C110 82kW/2200rpm 460N.m/1400rpm Turbocharged & intercooled TierⅠ
    4BTA3.9-C120 90kW/2400rpm 480N.m/1500rpm Turbocharged & intercooled TierⅠ
    4BTA3.9-C125 93kW/2200rpm 475N.m/1500rpm Turbocharged & intercooled TierⅠ
    4BTA3.9-C130 97kW/2500rpm 475N.m/1500rpm Turbocharged & intercooled TierⅠ
