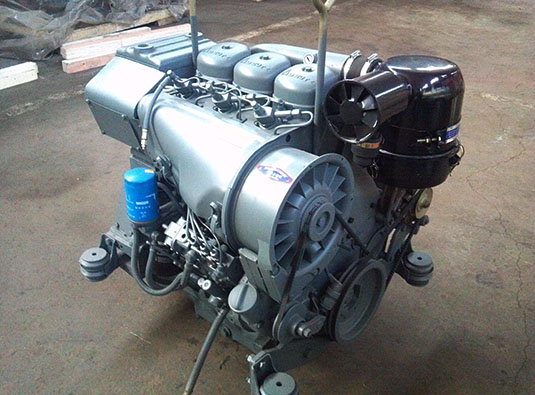

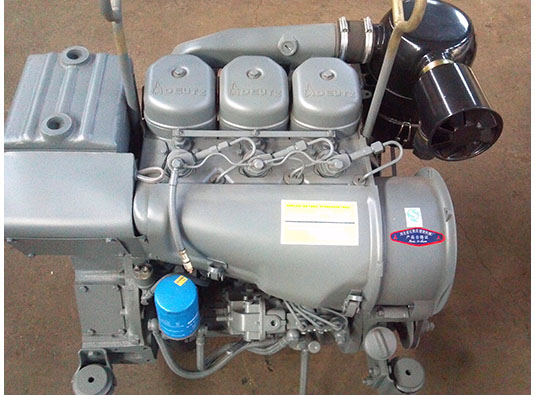

Deutz engine F3L912W
- Cylinder Number: 3 cylinder
- Combustion Type: Two-stage combustion
- Type: Low pollution
- Bore×Stroke: 100×120mm
- Compression Ration: 19:1
- Usage: Underground equipment
Product Description:
Air-cooled 3-cylinder Two-stage combustion in-line-engine. Direct injection.
Advanced injection and combustion system.
PTOs via gear, V-belt and crankshaft.
Extremely compact design.
High torque at low speeds.
Modular system with single cylinder arrangement and high degree of parts commonality.
Customized component system with many different peripheral parts.
Cold-starting ability even under extreme climatic conditions.
Technical Data:
| In-line, 3Cylinder, 4 Cycle Diesel Engine | ||||||||
| Bore×Stroke | 100mm×120mm | |||||||
| Displacement | 2.827 Liters | |||||||
| Compression Ration | 0.792361111 | |||||||
| Cooling Way | Air cooled | |||||||
| Combustion system | Two-stage combustion | |||||||
| Inspiration | Natural intake | |||||||
| Direction of rotation | Counterclockwise(face to flywheel end) | |||||||
| Fuel consumption ratio | 263.8g/kwh(limit value) | |||||||
| Oil consumption ratio | 2.04g/kwh(limit value) | |||||||
| Lubricant Capacity | 8Liters | |||||||
| Net Weight | 330kg | |||||||
| Overall Dimension(L×W×H) | 722mm×664mm×814mm | |||||||
| Useage | Power class | Power | Speed(rpm) | |||||
| 1500 | 1800 | 2000 | 2150 | 2300 | 2500 | |||
| Construction equipment | ISO 3046/1(IFN) | P(kW) | 22 | 26 | 29 | 30 | 32 | 33 |
| (Highly intermittent) | P(HP) | 30 | 35 | 39 | 41 | 44 | 45 | |
| ISO 3046/1(IFN) | P(kW) | 21 | 25 | 27 | 29 | 30 | 32 | |
| (Intermittent) | P(HP) | 29 | 34 | 37 | 39 | 41 | 44 | |
| ICFN | P(kW) | 20 | 24 | 26 | 27 | 29 | ||
| (Continuous) | P(HP) | 27 | 33 | 35 | 37 | 39 | ||
