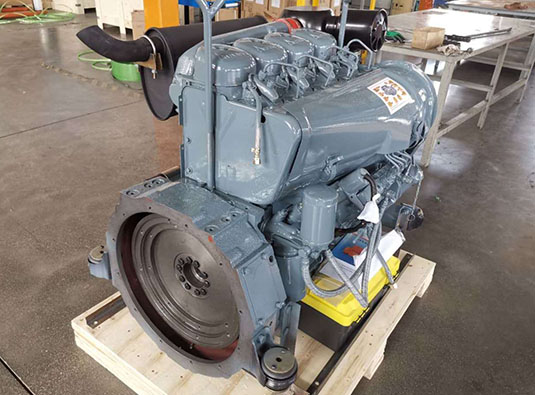

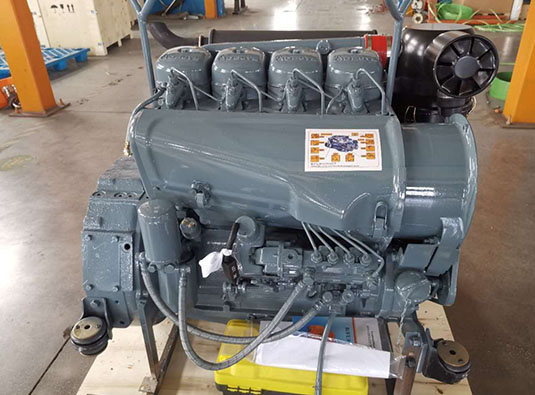

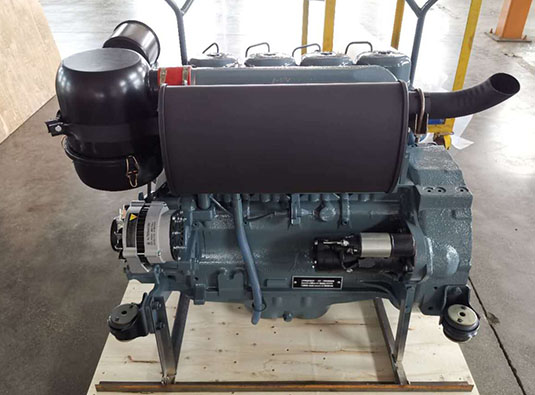

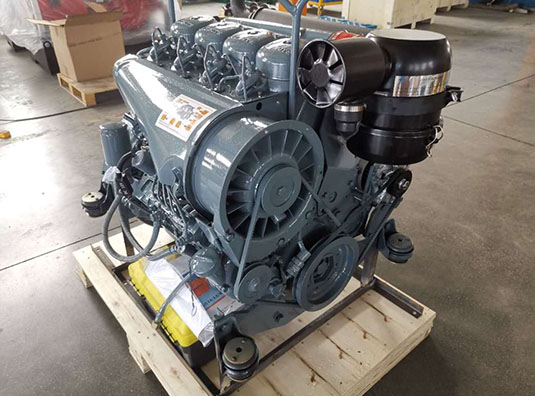

Deutz engine F4L913
- Cylinder Number: 4 cylinder
- Bore×Stroke: 102mm×125mm
- Displacement: 4.086 Liters
- Compression Ration : 17:1
- Combustion Type: Direct injection
- Cooling Way: Air cooled
- Usage: Construction machinery, agriculture machinery, generator set, water pump, marine
Product Description:
4 cylinder Deutz 913 series engine F4L913 is naturally aspirated engine in inline arrangement.
Low noise emissions due to acoustically optimized components with very smooth running and high durability.
Easy, inexpensive installation due to minimum weight and small installation space.
Best cold starting performance even under extreme conditions.
The robust engine design allows worldwide operation even with high sulphur fuels.
Highly efficient injection and combustion system ensures optimum engine performance at low consumption.
Technical Data:
| In-line, 4Cylinder, 4 Cycle Diesel Engine | ||||||||
| Bore×Stroke | 100mm×120mm | |||||||
| Displacement | 3.770 Liters | |||||||
| Compression Ration | 17:1 | |||||||
| Cooling Way | Air cooled | |||||||
| Combustion system | Direct injection | |||||||
| Inspiration | Natural intake | |||||||
| Direction of rotation | Counterclockwise(face to flywheel end) | |||||||
| Fuel consumption ratio | 236.6g/kwh(limit value) | |||||||
| Oil consumption ratio | 2.04g/kwh(limit value) | |||||||
| Lubricant Capacity | 9.5Liters | |||||||
| Net Weight | 400kg | |||||||
| Overall Dimension(L×W×H) | 852mm×664mm×799mm | |||||||
| (Useage) | (Power class) | (Power) | (Speed)(rpm) | |||||
| 1500 | 1800 | 2000 | 2150 | 2300 | 2500 | |||
| (Construction equipment) | ISO 3046/1(IFN) | P(kW) | 35 | 43 | 46 | 49 | 51 | 54 |
| (Highly intermittent) | P(HP) | 48 | 58 | 63 | 67 | 69 | 73 | |
| ISO 3046/1(IFN) | P(kW) | 34 | 40 | 44 | 46 | 49 | 51 | |
| (Intermittent) | P(HP) | 46 | 54 | 60 | 63 | 67 | 69 | |
| ICFN | P(kW) | 32 | 38 | 41 | 44 | 46 | ||
| (Continuous) | P(HP) | 44 | 52 | 56 | 60 | 63 | ||
| (Genset) | ICXN | P(kW) | 34 | 40 | ||||
| (Continuous) | P(HP) | 46 | 54 | |||||
| (Marine) | ICXN | P(kW) | 32 | 38 | 41 | 44 | 46 | |
| P(HP) | 44 | 52 | 56 | 60 | 63 | |||
| I0FN | P(kW) | 49 | 51 | 54 | ||||
| P(HP) | 67 | 69 | 73 | |||||
