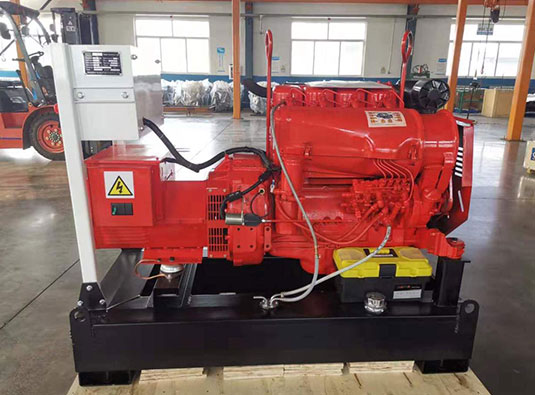

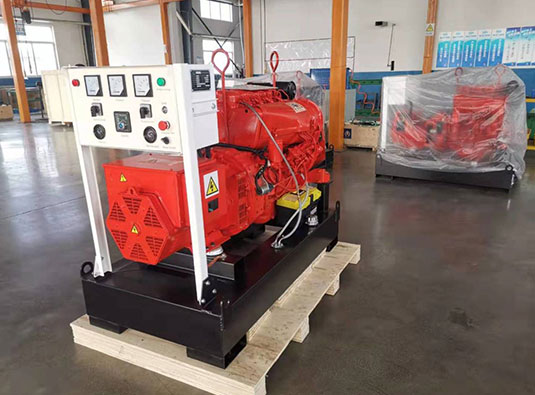

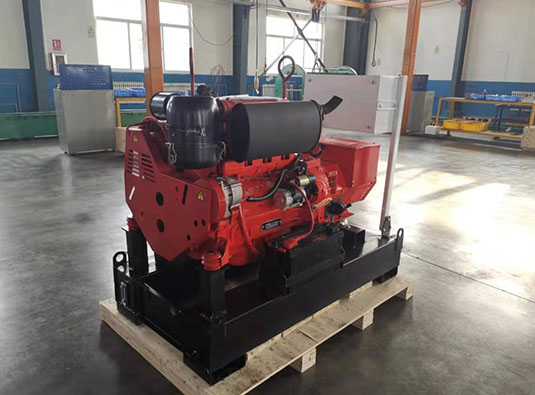

32KW Diesel Generator Set with Deutz F4L912 Engine
- Generator Set Model: DT40D
- Rated Power: 32kW
- Rated Frequency: 50HZ
- Phase: 3
- Rated Voltage: 220/380V
- Rated Current: 61A
- Net Weight: 690kgs
Product Description:
We are professional manufacturer of deutz diesel engine and deutz diesel generators.
Air Cooled Engine Deutz Models: F2L912, F3L912, F4L912, F4L912T, F6L912, F6L912T, BF6L913, BF6L913C
Alternator Brand : Stamford, Leroy Somer, Leroy Some, Marathon .
Generator Set Power: 12kw, 15kw, 20kw, 25kw, 24kw, 30kw, 36kw, 45kw, 40kw, 50kw, 52kw, 65kw, 75kw, 93kw, 75kw, 100kw, 125kw
Technical Data:
| Model | DT40D |
| Genset | |
| Prime power(kw/kva) when 50HZ | 32/40 |
| Engine | |
| Model | F4L912 |
| Prime power | 39KW/1500rpm |
| Number of cylinder | 4 |
| Cylinder arrangement | Vertical line |
| Cooling system | Air cooled |
| Aspiration | Naturally |
| Governor | Mechanical |
| Bore*Stroke | 100*120mm |
| 50% Fuel consumption | 3.9L/hr |
| 75% Fuel consumption | 5.6L/hr |
| 100% Fuel consumption | 7.15L/hr |
| Alternator | |
| Excitation type | Brushless excitation |
| Rated current(A) | 61 |
| Insulative grade | H |
| Protection grade | IP22 |
| Voltage | 220/380V |
| Tolerance of voltage | ≤±1% |
| Dimension | 1550*850*1210mm |
| Weight | 690 |
