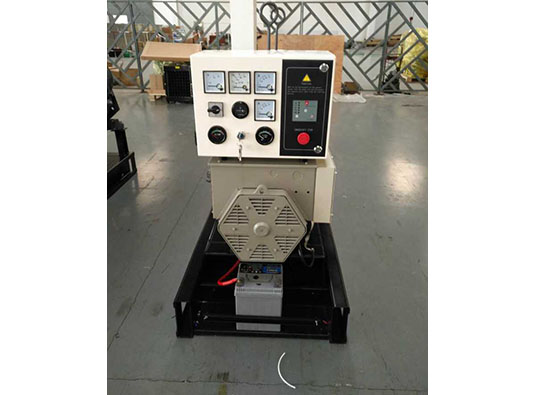

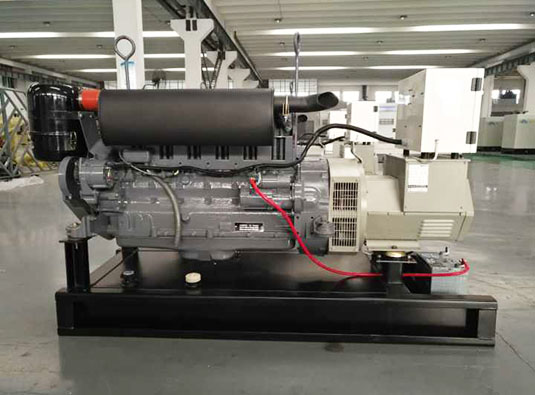

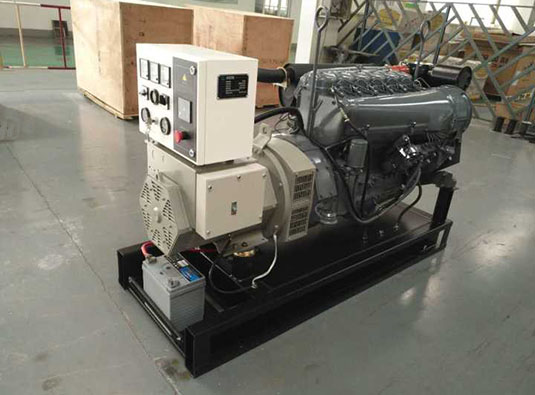

40KW Diesel Generator Set with Deutz F6L912 Engine
- Generator Set Mode: DT50D
- Rated Power: 40kW
- Rated Frequency: 50HZ
- Phase: 3
- Rated Voltage: 220/380V
- Rated Current: 72A
- Net Weight: 850kgs
Product Description:
Technical Data:
|
Model |
DT50D |
|
Genset |
|
| Prime power(kw/kva) when 50HZ |
40/50 |
| Engine | |
| Model | F6L912 |
| Prime power | 48KW/1500rpm |
| Number of cylinder | 6 |
| Cylinder arrangement | Vertical line |
| Cooling system | Air cooled |
| Aspiration | Naturally |
| Governor | Mechanical |
| Bore*Stroke | 100*120mm |
| 50% Fuel consumption | 6.6L/hr |
| 75% Fuel consumption | 9.5L/hr |
| 100% Fuel consumption | 11.9L/hr |
| Alternator | |
| Excitation type | Brushless excitation |
| Rated current(A) | 72 |
| Insulative grade | H |
|
Protection grade |
IP22 |
| Voltage | 220/380V |
| Tolerance of voltage | ≤±1% |
| Dimension | 1700*900*1200mm |
| Weight | 760 |
