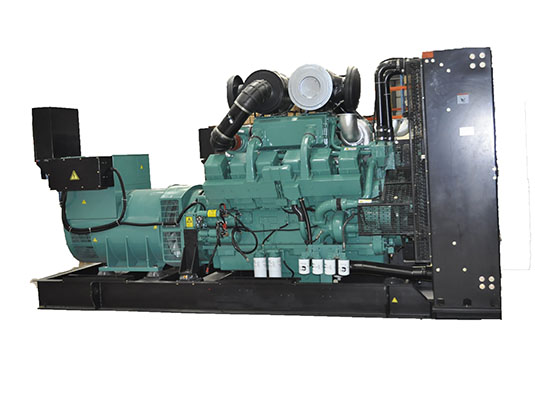

250KVA-1650KVA Cummins Diesel Generator Set
- Stroke: Four Stroke
- Cooling Method: Water Cooling
- Output Type: AC Three Phase
- Rated power: 250KVA-1650KVA
Product Description:
Technical Data:
| Genset Specification | Engine Specification | Genset Open Date | |||||||||
| Genset Model | 50HZ | 60HZ | Fuel Cons 100%
(L/H) |
Engine Model | Cyl | Gov | Displacement
(L) |
Dimention
(MM) |
Weight
(KG) |
||
| Power(kva) | Power (kva) | ||||||||||
| ESP | PRP | ESP | PRP | ||||||||
| DT25C1 | 27.5 | 25 | 35 | 31 | 7.1 | 4B3.9-G1 | 4L | M | 3.9 | N.A | 830 |
| DT25C | 27.5 | 25 | 45 | 41.3 | 6.7 | 4B3.9-G2 | 4L | E | 3.9 | 1725*950*1500 | 830 |
| DT40C1 | 44 | 40 | 10 | 4BT3.9-G1 | 4L | M | 3.9 | 1870*950*1500 | 950 | ||
| DT40C | 44 | 40 | 55 | 50 | 9.3 | 4BT3.9-G2 | 4L | E | 3.9 | 1870*950*1500 | 950 |
| DT50C | 55 | 50 | 57.5 | 52.5 | 12.9 | 4BTA3.9-G2 | 4L | E | 3.9 | 1870*950*1500 | 950 |
| DT60C1 | 66 | 60 | 67 | 60 | 12.9 | 4BTA3.9-G2 | 4L | E | 3.9 | 1870*950*1500 | 990 |
| DT60C | 66 | 60 | 75 | 67.5 | 17.6 | 4BTA3.9-G11 | 4L | E | 3.9 | 1870*950*1500 | 1000 |
| DT72.5C | 80 | 72.5 | 92.5 | 85 | 17.6 | 4BTA3.9-G11 | 4L | E | 3.9 | 1870*950*1500 | 1000 |
| DT85C1 | 94 | 85 | 21.7 | 6BT5.9-G1 | 6L | M | 5.9 | 2220*950*1530 | 1200 | ||
| DT90C1 | 100 | 90 | 21.7 | 6BT5.9-G1 | 6L | M | 5.9 | 2220*950*1530 | 1200 | ||
| DT100C1 | 110 | 100 | 21.7 | 6BT5.9-G1 | 6L | M | 5.9 | 2220*950*1530 | 1200 | ||
| DT85C | 94 | 85 | 107.5 | 97.5 | 22.3 | 6BT5.9-G2 | 6L | E | 5.9 | 2250*950*1530 | 1200 |
| DT90C | 100 | 90 | 125 | 110 | 22.3 | 6BT5.9-G2 | 6L | E | 5.9 | 2250*950*1530 | 1200 |
| DT100C | 110 | 100 | 135 | 127.5 | 22.3 | 6BT5.9-G2 | 6L | E | 5.9 | 2250*950*1530 | 1200 |
| DT113C | 125 | 113 | 143 | 130 | 27 | 6BTA5.9-G2 | 6L | E | 5.9 | 2400*950*1530 | 1200 |
| DT125C | 138 | 125 | 163 | 148 | 30 | 6BTAA5.9-G2 | 6L | E | 5.9 | 2400*950*1530 | 1240 |
| DT138C | 150 | 138 | 30 | 6BTAA5.9-G2 | 6L | E | 5.9 | 2400*950*1530 | 1360 | ||
| DT150C | 165 | 150 | 175 | 160 | 34 | 6BTAA5.9-G12 | 6L | E | 5.9 | 2400*950*1530 | 1400 |
| DT160C | 176 | 160 | 42 | 6CTA8.3-G1 | 6L | M | 8.3 | 2420*950*1690 | 1650 | ||
| DT160C | 176 | 160 | 185 | 168 | 42 | 6CTA8.3-G2 | 6L | E | 8.3 | 2420*950*1690 | 1690 |
| DT180C | 200 | 180 | 42 | 6CTA8.3-G1 | 6L | M | 8.3 | 2420*950*1690 | 1650 | ||
| DT180C | 200 | 180 | 220 | 200 | 42 | 6CTA8.3-G2 | 6L | E | 8.3 | 2420*950*1690 | 1690 |
| DT200C | 220 | 200 | 250 | 228 | 45 | 6CTAA8.3-G2 | 6L | E | 8.3 | 2540*950*1750 | 1810 |
| DT230C | 250 | 230 | 275 | 250 | 53 | 6LTAA8.9-G2 | 6L | E | 8.9 | 2580*1020*1670 | 2030 |
| DT250C | 275 | 250 | 300 | 275 | 54 | 6LTAA8.9-G3 | 6L | E | 8.9 | 2580*1020*1670 | 2030 |
| DT375C | 413 | 375 | 413 | 375 | 76.5 | 6ZTAA13-G3 | 6L | ECM | 13 | 3050*1200*1740 | 3260 |
| DT400C | 440 | 400 | 480 | 438 | 89.1 | 6ZTAA13-G2 | 6L | ECM | 13 | 3050*1200*1740 | 3340 |
| DT438C | 480 | 438 | 89.1 | 6ZTAA13-G2 | 6L | ECM | 13 | 3050*1200*1740 | 3340 | ||
| DT450C | 500 | 450 | 500 | 450 | 91.4 | 6ZTAA13-G4 | 6L | ECM | 13 | 3050*1200*1740 | 3300 |
| DT450C | 475 | 438 | 500 | 450 | 88.8 | QSZ13-G2 | 6L | ECM | 13 | 3050*1200*1740 | 3355 |
| DT500C | 525 | 500 | 530 | 500 | 101 | QSZ13-G3 | 6L | ECM | 13 | 3050*1200*1740 | 3355 |
| DT450C | 500 | 450 | 5500 | 500 | 93 | QSZ13-G5 | 6L | ECM | 13 | 3050*1200*1740 | 3385 |
| DT350C | 385 | 350 | 82 | QSZ13-G6 | 6L | ECM | 13 | 3050*1200*1740 | 3400 | ||
| DT363C | 400 | 363 | 440 | 400 | 82 | QSZ13-G6 | 6L | ECM | 13 | 3050*1200*1740 | 3400 |
| DT400C | 440 | 400 | 500 | 450 | 89 | QSZ13-G7 | 6L | ECM | 13 | 3050*1200*1740 | 3430 |
