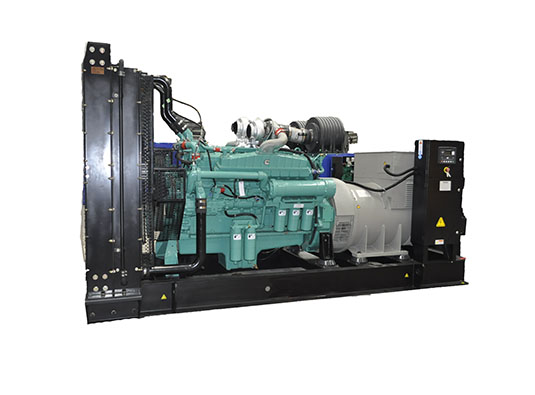

220KVA-3000KVA Cummins Diesel Generator Set
- Stroke: Four Stroke
- Cooling Method: Water Cooling
- Output Type: AC Three Phase
- Rated power: 220-3000KVA
Product Description:
Technical Data:
| Genset Specification | Engine Specification | Genset Open Date | |||||||||
| Genset Model | 50HZ | 60HZ | Fuel Cons 100%
(L/H) |
Engine Model | Cyl | Gov | Displacement
(L) |
Dimention
(MM) |
Weight
(KG) |
||
| Power(kva) | Power (kva) | ||||||||||
| ESP | PRP | ESP | PRP | ||||||||
| DT250C | 275 | 250 | 52.9 | MTA11-G2 | 6L | E | 10.8 | 2900*1200*1690 | 3075 | ||
| DT250C1 | 275 | 250 | 55 | MTA11-G2A | 6L | E | 10.8 | 2900*1200*1690 | 3100 | ||
| DT300C | 330 | 300 | 62.8 | MTAA11-G3 | 6L | E | 10.8 | 2900*1200*1690 | 3132 | ||
| DT312.5C | 343.8 | 312.5 | 62.8 | MTAA11-G3 | 6L | E | 10.8 | 2900*1200*1690 | 3132 | ||
| DT250C | 275 | 250 | 53.4 | NT855-GA | 6L | E | 14 | 2950*1200*1740 | 3007 | ||
| DT275C | 312.5 | 275 | 61.3 | NTA855-G1A | 6L | E | 14 | 3050*1200*1740 | 3260 | ||
| DT312.5C1 | 350 | 312.5 | 385 | 350 | 71.4 | NTA855-G1B | 6L | E | 14 | 3050*1200*1740 | 3340 |
| DT325C | 355 | 325 | 400 | 360 | 69 | QSM11-G2 | 6L | ECM | 10.8 | 2900*1500*1750 | 3300 |
| DT350C | 387.5 | 350 | 71.9 | NTA855-G2A | 6L | E | 14 | 3050*1200*1740 | 3355 | ||
| DT350C1 | 387.5 | 350 | 75.3 | NTA855-G4 | 6L | E | 14 | 3050*1200*1740 | 3355 | ||
| DT375C | 412.5 | 375 | 85.4 | NTAA855-G7 | 6L | E | 14 | 3250*1230*1800 | 3485 | ||
| DT400C | 450 | 400 | 89.2 | NTAA855-G7A | 6L | E | 14 | 3250*1230*1800 | 3485 | ||
| DT450C | 500 | 450 | 578 | 525 | 97 | KTA19-G3 | 6L | E | 19 | 3380*1390*2050 | 4166 |
| DT500C | 550 | 500 | 625 | 562.5 | 107 | KTA19-G3A | 6L | E | 19 | 3380*1390*2050 | 4166 |
| DT500C1 | 550 | 500 | 688 | 625 | 107 | KTA19-G4 | 6L | E | 19 | 3380*1390*2050 | 4166 |
| DT525C | 575 | 525 | 750 | 687.5 | 113 | KTAA19-G5 | 6L | E | 19 | 3670*1680*2190 | 4650 |
| DT575C | 630 | 575 | 132 | KTAA19-G6 | 6L | E | 19 | 3670*1680*2190 | 4658 | ||
| DT590C | 650 | 590 | 139 | KTA19-G8 | 6L | E | 19 | 3380*1390*2050 | 5365 | ||
| DT625C | 687.5 | 625 | 127.8 | KTAA19-G6A | 6L | E | 19 | 3720*1680*2190 | 4813 | ||
| DT650C | 713 | 650 | 688 | 625 | 145 | QSKTAA19-G4 | 6L | ECM | 18.9 | 3620*1720*2320 | 4909 |
| DT725C | 800 | 725 | 157 | KT38-GA | 12V | E | 38 | 4410*1720*2170 | 7190 | ||
| DT750C | 825 | 750 | 1000 | 910 | 167 | KTA38-G2 | 12V | E | 38 | 4410*1720*2170 | 7190 |
| DT800C | 880 | 800 | 167 | KTA38-G2B | 12V | E | 38 | 4410*1720*2170 | 7199 | ||
| DT900C | 1000 | 900 | 1125 | 1025 | 191 | KTA38-G2A | 12V | E | 38 | 4410*1720*2170 | 7359 |
| DT1000C | 1100 | 1000 | 209 | KTA38-G5 | 12V | E | 38 | 4300*2080*2190 | 7777 | ||
| DT1125C | 1250 | 1125 | 1375 | N.A | 251 | KTA38-G9 | 12V | E | 38 | 4400*2080*2190 | 8156 |
| DT1250C | 1375 | 1250 | 1513 | 1375 | 254 | KTA50-G3 | 16V | E | 50.3 | 5000*2080*2290 | 9281 |
| DT1250C1 | 1375 | 1250 | 274 | QSKTA38-G5 | 12V | ECM | 37.7 | 4650*2160*2440 | 8547 | ||
| DT1375C | 1500 | 1375 | 289 | KTA50-G8 | 16V | E | 50.3 | 4960*2200*2620 | 10371 | ||
| DT1650CS | 1650 | N.A | 289 | KTA50-G8 | 16V | E | 50.3 | 4960*2200*2620 | 10371 | ||
| DT1500C | 1650 | 1500 | 309 | KTA50-GS8 | 16V | E | 50.3 | 5170*2120*2360 | 10762 | ||
| DT400C | 437.5 | 400 | 70.5 | QSNT-G3 | 6L | E | 14 | N.A | N.A | ||
