Home » Products » BF6M2012

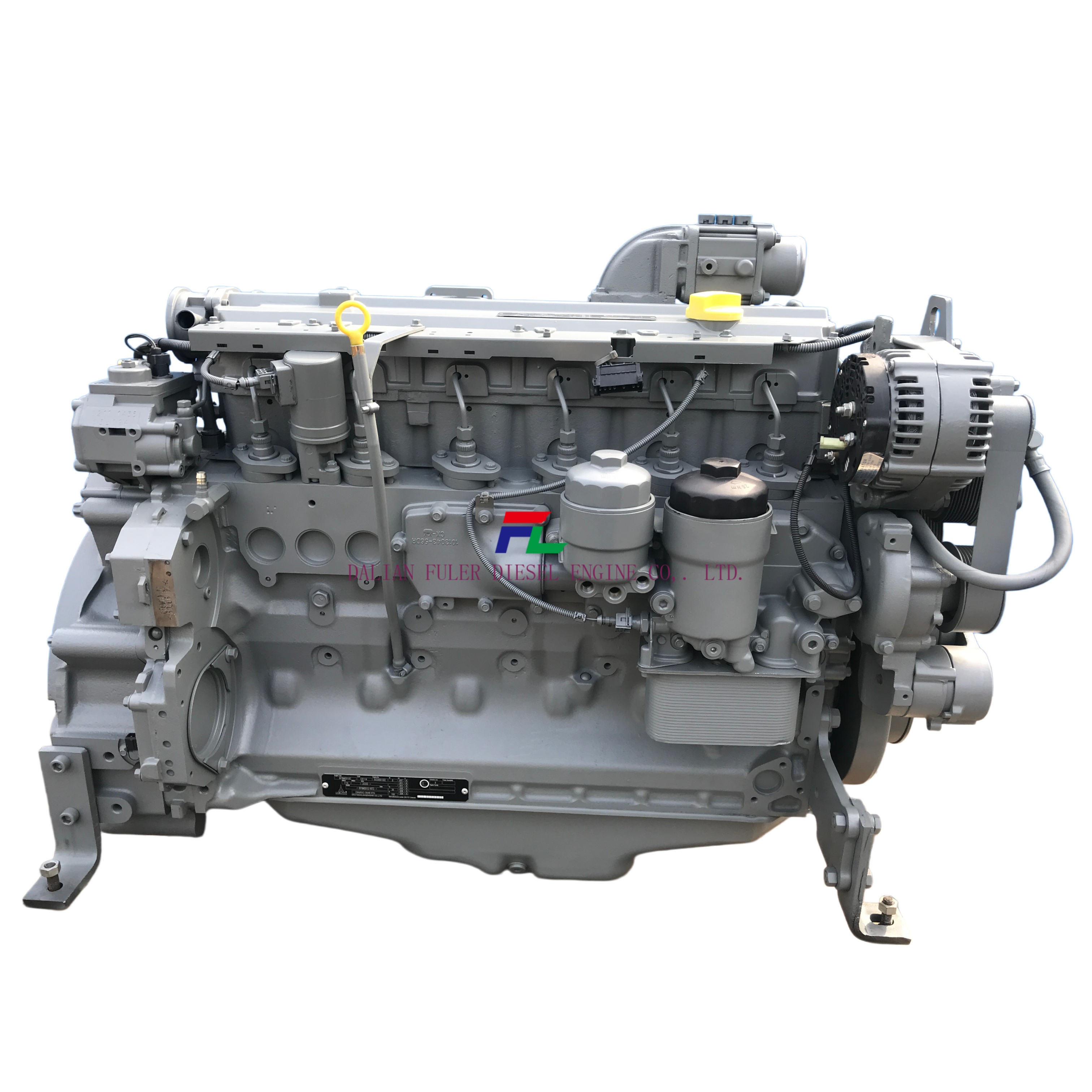

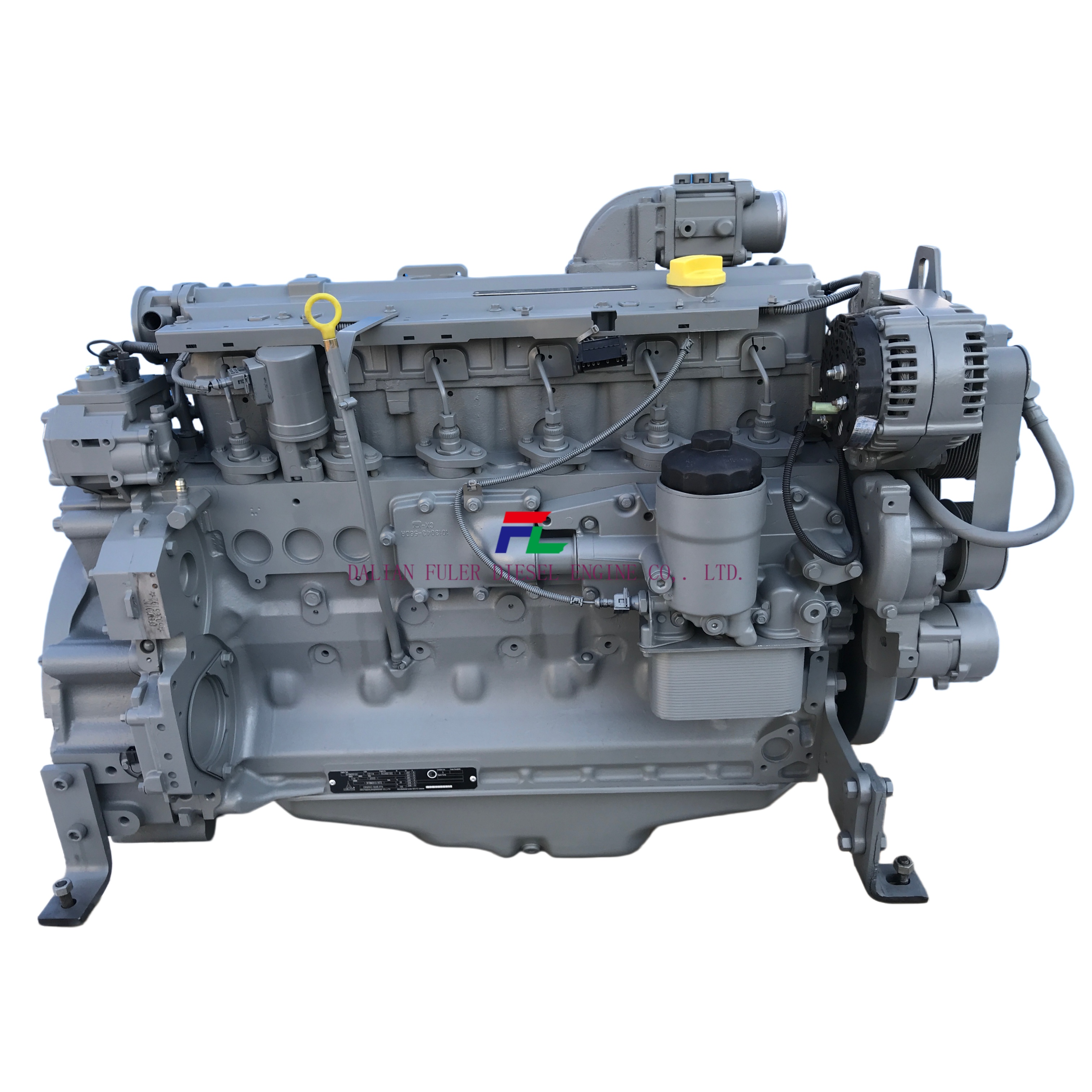

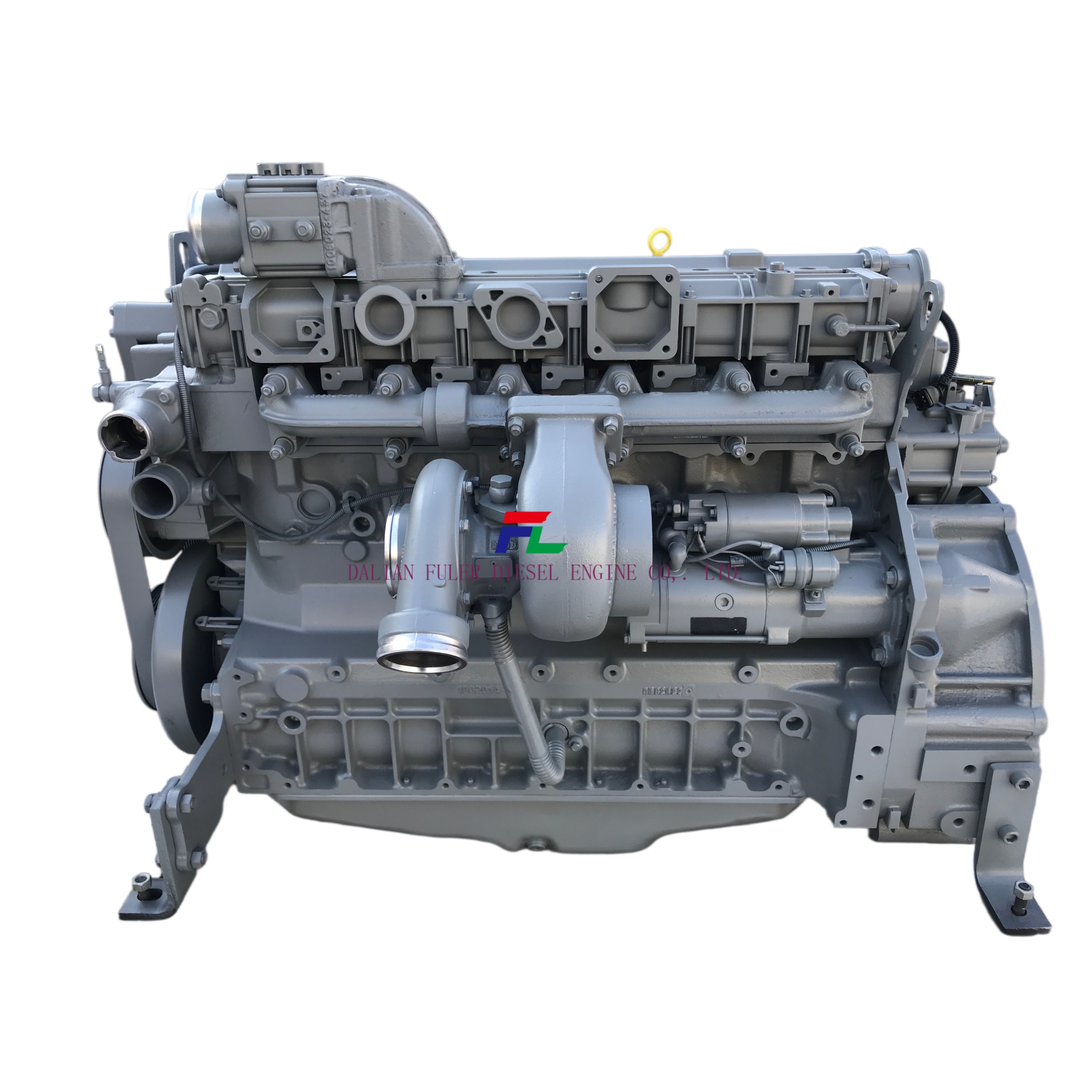

BF6M2012

Deutz BF6M2012C – General Information Details Model BF6M2012C Type 6 Cylinders in Line Displacement 6.06L Bore * Stroke 101*126 Net Weight 530 Kg Overall Dimension 1393mm733mm971mm Manufacture Plant Deutz Joint Venture Plant Performance Data Standby Power/Speed 155 kW @ 1500 rpm Max. Torque/Speed 743 Nm @ 1500 rpm Specific Fuel Consumption 202 g/kWh

Product Parameters

BF6M 2012
General Information	Details
Model	BF6M2012
Type	6 Cylinders in Line
Displacement	6.06 L
Bore * Stroke	101 * 126
Net Weight (with flywheel & alternator)	509 Kg
Overall Dimension	1027mm595mm907mm
Manufacture Plant	Dalian Deutz Engine Plant
Performance Data
Rated Power/Speed	139 kW/180 HP, 2500 rpm
Max. Torque/Rated Speed	660 N.m @ 1500 rpm
Idle Speed	650 – 750 rpm
Fuel Consumption @ rated Power	235.74 g/kw.h
Min. Fuel Consumption @ Full – load	192 g/Kw.h
Max. Continuous Running Altitude	2000 m
Technical Specification
Certification	Euro IV
Aspiration	Turbocharged & Aftercooled
Fuel System	Electronic Unit Pump, SCR
Compression Radio	18.4:1
Starting System	Electonic Starting (12V/24V)
Engine Cooling Fluid Volume	17.5 L
Cooling Method	Water Cooled

Packaging and transportation

FAQ

1. Q: Are the parts supplied genuine?

A: We supply spare parts according to client’s demand. Original parts, aftermarket Parts and OEM parts are both available with competitive price.

2. Q: Can l talk to some one if l am unsure of what I need or have?

A: Yes, our enthusiastic,patient and professional sales staff will provide you with the most detailed and professional technical support, consultation and quotation.You can assist our sales staff by obtaining as much information as you can. For example, you could provide the engine serial number or engine name plate or other Machine nameplate.

3. Q: What is the warranty of your products?

A: Usually, 6 months warranty for spare parts.
Electronic components without warranty.
Engine complete assembly warranty 6 months .

4. Q: What is your delivery time?

A: The production time of complete diesel engine is about 7-20 days! Some spare parts are in stock. Delivery time 1-2 working days.Others spare parts 4-7 working days roughly
