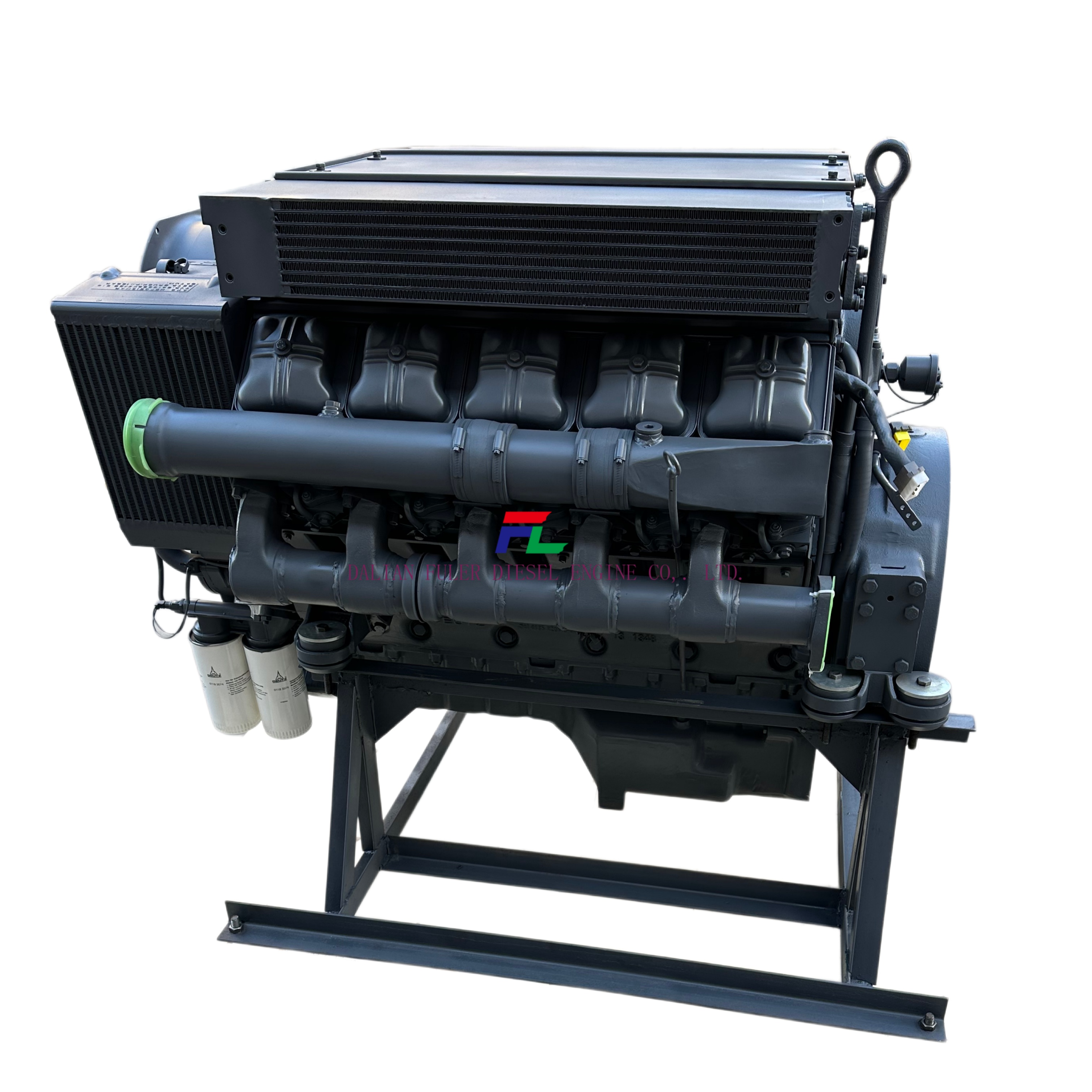

DEUTZ F 10 L 413 FW ENGINE
The robust engine design guarantees high operational safety, also even under extreme conditions when working underground
The very compact engine design of the V engine and the integrated cooling system reduce the installation costs.
Low operating costs due to low fuel consumption, low amounts of ventilation, as well as long maintenance intervals with low maintenance requirements.
Capacity: 1.6 l/cylinder, modular system with single cylinders.
Product Parameters
|
F 10L 413 FW |
|
|
Technical data |
|
|
Emission norms |
EU II, US T2 |
|
Number of cylinders |
10 |
|
Bore |
125 mm4.9 in |
|
Stroke |
130 mm5.1 in |
|
Displacement |
15.9 l970 cu in |
|
Maximum nominal speed |
2300 rpm |
|
Power output |
170 kW228 hp |
|
at speeds |
2300 rpm |
|
Max. torque |
830 Nm612 lb/ft |
|
at speeds |
1500 rpm |
|
Min. idling speed |
600 rpm |
|
Specific fuel consumption |
276 g/kWh0.45 lb/hph |
|
Length |
1283 mm50.5 in |
|
Width |
1038 mm40.9 in |
|
Height |
999 mm39.3 in |
|
Weight |
990 kg2183 lb |
