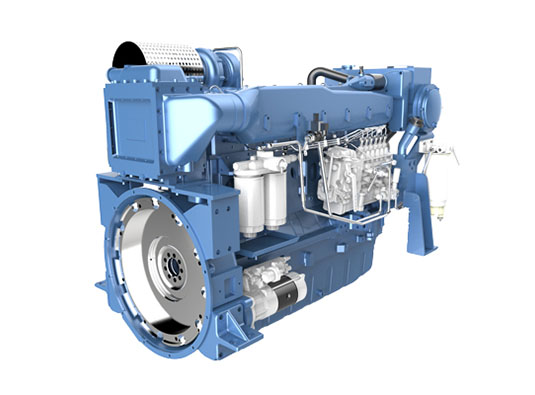

Weichai WD10 series marine diesel engine (140-240kW)
- Brand: Weichai
- Model: WD10
- Cylinder No.: 6 cylinder
- Power: 140-240kW
- Bore*Stroke: 126×130(mm)
- Displacement: 9.726L
Product Description:
Safe and reliable
Technical Data:
| Type | Four-stroke, water cooled, in-line, turbocharged/turbocharged and intercooled | Number of cylinders | 6 | ||||
| Cylinder diameter/stroke | 126×130(mm) | Displacement | 9.726L | ||||
| Oil consumption rate | ≤0.6g/kW·h | Noise | ≤99dB（A） | ||||
| Minimum fuel consumption rate | 195g/kW·h | Idle speed | 600±50r/min | ||||
| Torque reserve | 20-35% | Rotation direction of crankshaft | Clockwise | ||||
| DimensionsLength × Width × Height/net weight | Turbocharged 1499×814×1164（mm） 1018kg Turbocharged and intercooled, dry-type exhaust pipe 1447×960×1211（mm） 1056kg Turbocharged and intercooled, water jacket exhaust pipe 1452×814×1418（mm） 1056kg | ||||||
| Series | Model | Air intake mode | Rated power kW/Ps | Speed r/min | Speed Fuel feeding mode | Emission level | Power classification |
| WD10 | WD10C190-15 | Turbocharged and intercooled | 140/190 | 1500 | Mechanical pump | IMOⅡ | P1 |
| WD10C218-15 | Turbocharged and intercooled | 160/218 | 1500 | Mechanical pump | IMOⅡ | P1 | |
| WD10C240-15 | Turbocharged and intercooled | 176/240 | 1500 | Mechanical pump | IMOⅡ | P1 | |
| WD10C240-18 | Turbocharged and intercooled | 176/240 | 1800 | Mechanical pump | IMOⅡ | P1 | |
| WD10C278-15 | Turbocharged and intercooled | 205/278 | 1500 | Mechanical pump | IMOⅡ | P1 | |
| WD10C278-21 | Turbocharged and intercooled | 205/278 | 2100 | Mechanical pump | IMOⅡ | P1 | |
| WD10C300-21 | Turbocharged and intercooled | 220/300 | 2100 | Mechanical pump | IMOⅡ | P1 | |
| WD10C312-18 | Turbocharged and intercooled | 230/312 | 1800 | Mechanical pump | IMOⅡ | P1 | |
| WD10C326-21 | Turbocharged and intercooled | 240/326 | 2100 | Mechanical pump | IMOⅡ | P1 | |
