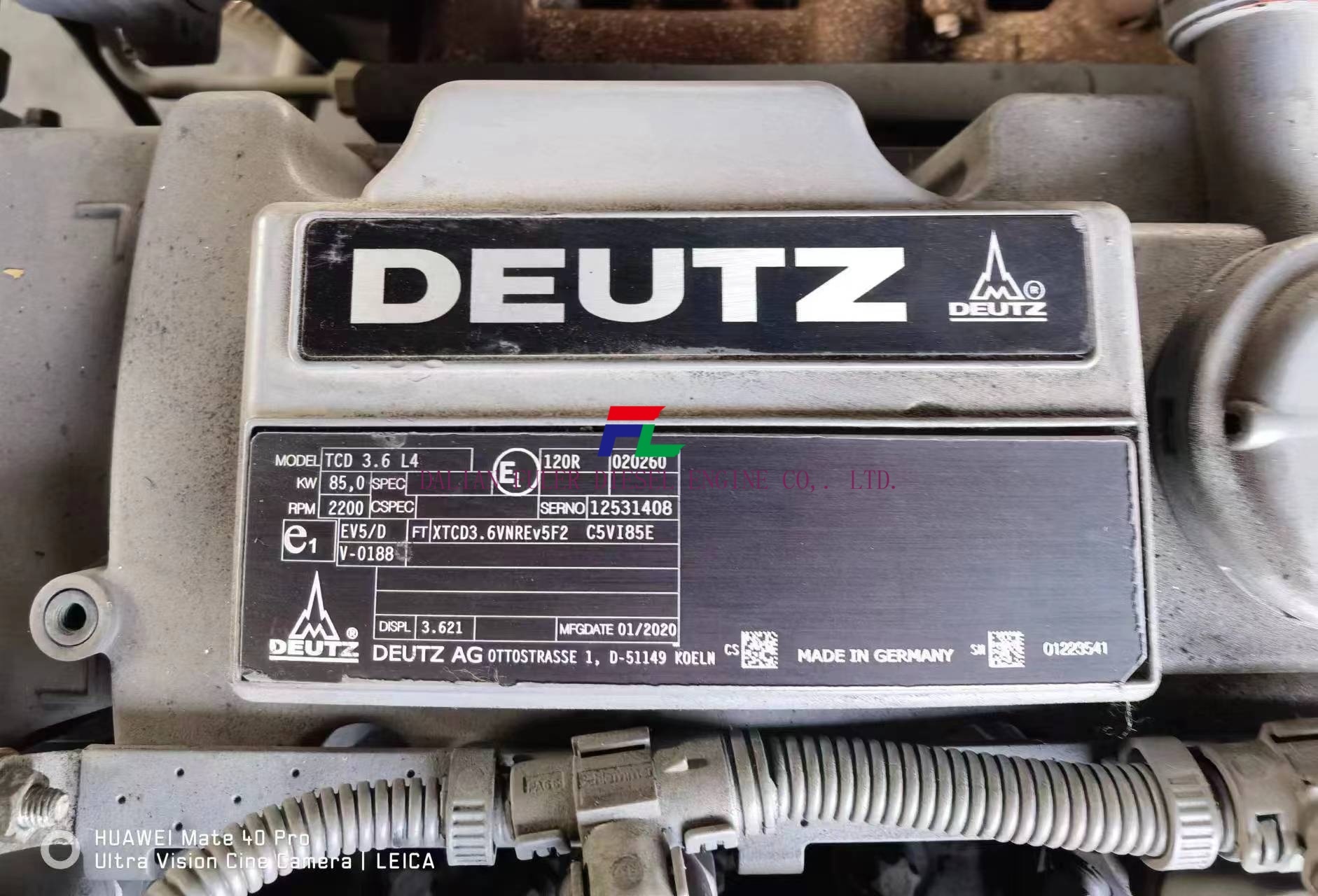

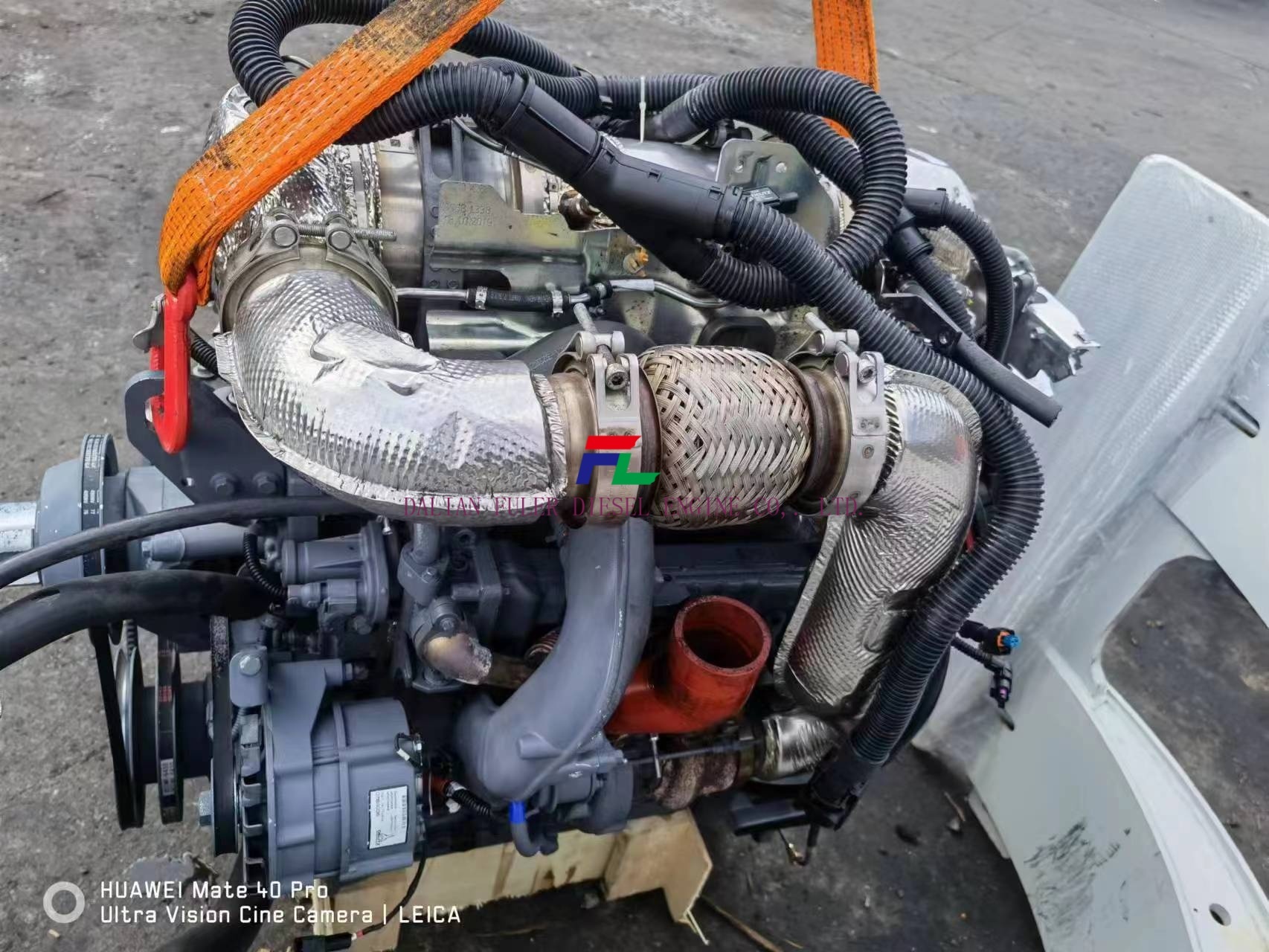

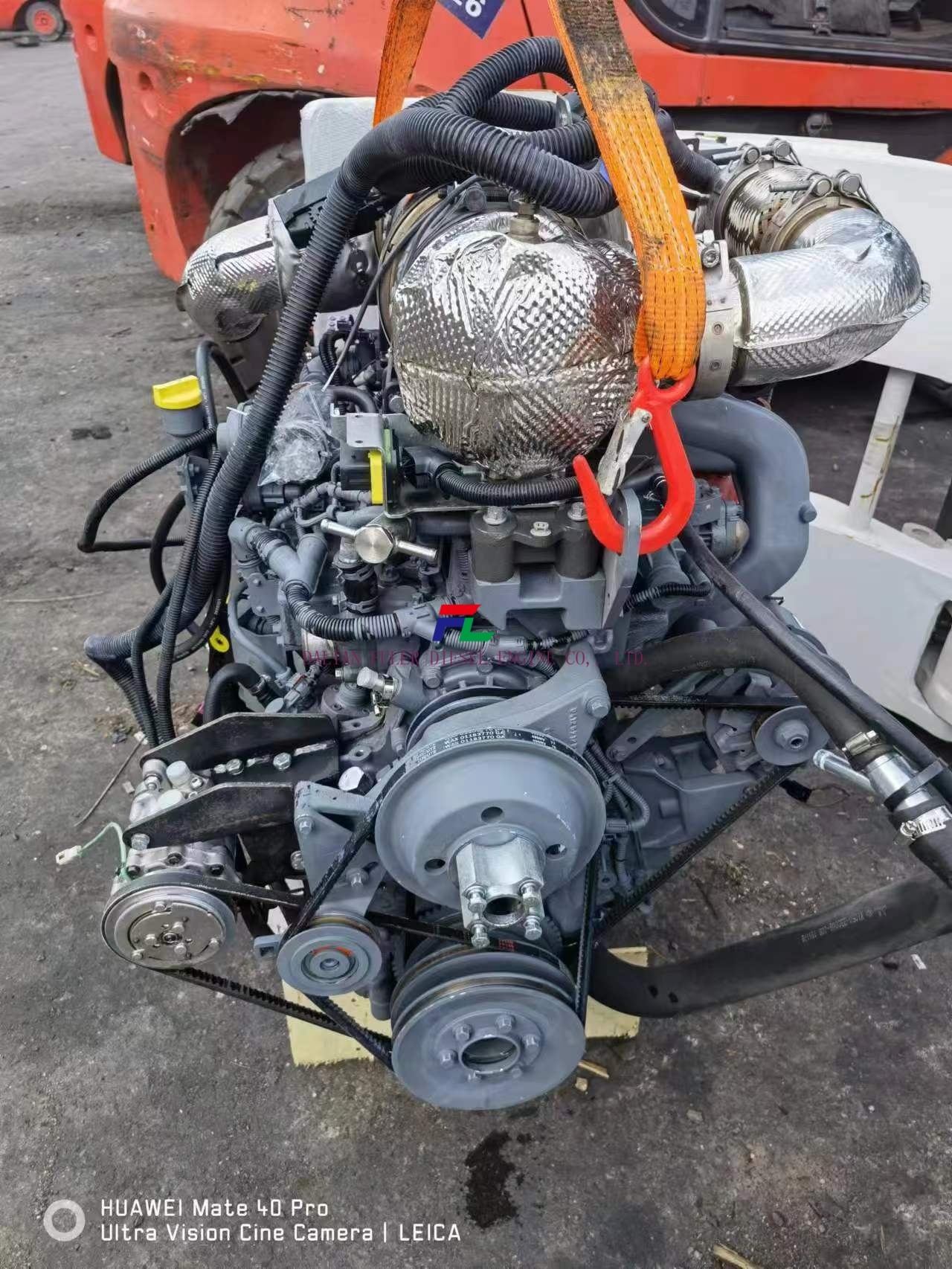

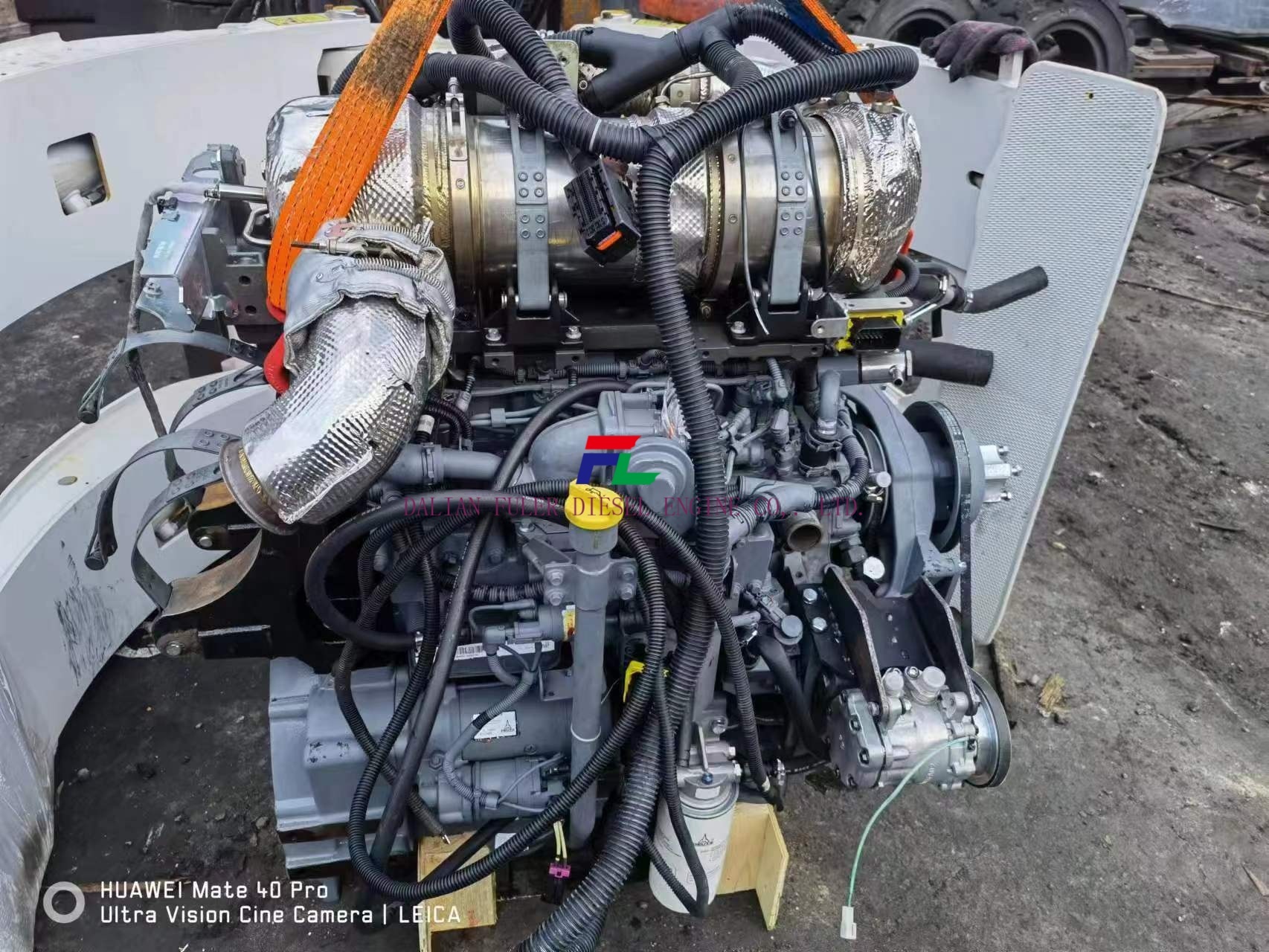

DEUTZ TCD 3.6 L4 ENGINE
Water-cooled 4-cylinder inline engine with cooled, external exhaust gas recirculation with turbocharging and optionally with and without charge air cooling.
The powerful Common Rail injection system and the electronic engine control (EMR) with intelligent link to the drive management ensure optimum engine performance at low fuel consumption.
Parameter Produk
|
DEUTZ TCD 3.6 L4 ENGINE |
|
|
Standar emisi |
EU V, US T4f, EU IV |
|
Series |
TCD 3.6 |
|
Jumlah silinder |
4 |
|
Lubang |
98 mm3.9 in |
|
Stroke |
120 mm4.7 in |
|
Perpindahan |
3.6 l220 cu in |
|
Kecepatan nominal maksimum |
2.300 putaran per menit |
|
Output daya |
100 kW134 hp |
|
pada kecepatan |
2.300 putaran per menit |
|
Torsi maksimum |
500 Nm369 lb/ft |
|
pada kecepatan |
1.600 putaran per menit |
|
Kecepatan putaran idle minimum |
800 putaran per menit |
|
Konsumsi bahan bakar spesifik |
210 g/kWh0.35 lb/hph |
|
Panjang |
701 mm27.6 in |
|
Lebar |
592 mm23.3 in |
|
Tinggi |
790 mm31.1 in |
|
Berat |
350 kg772 lb |
