The BF12L513 is a high-performance, heavy-duty diesel engine designed for demanding applications. This overview details its key specifications, design features, and typical uses.
Engine Overview

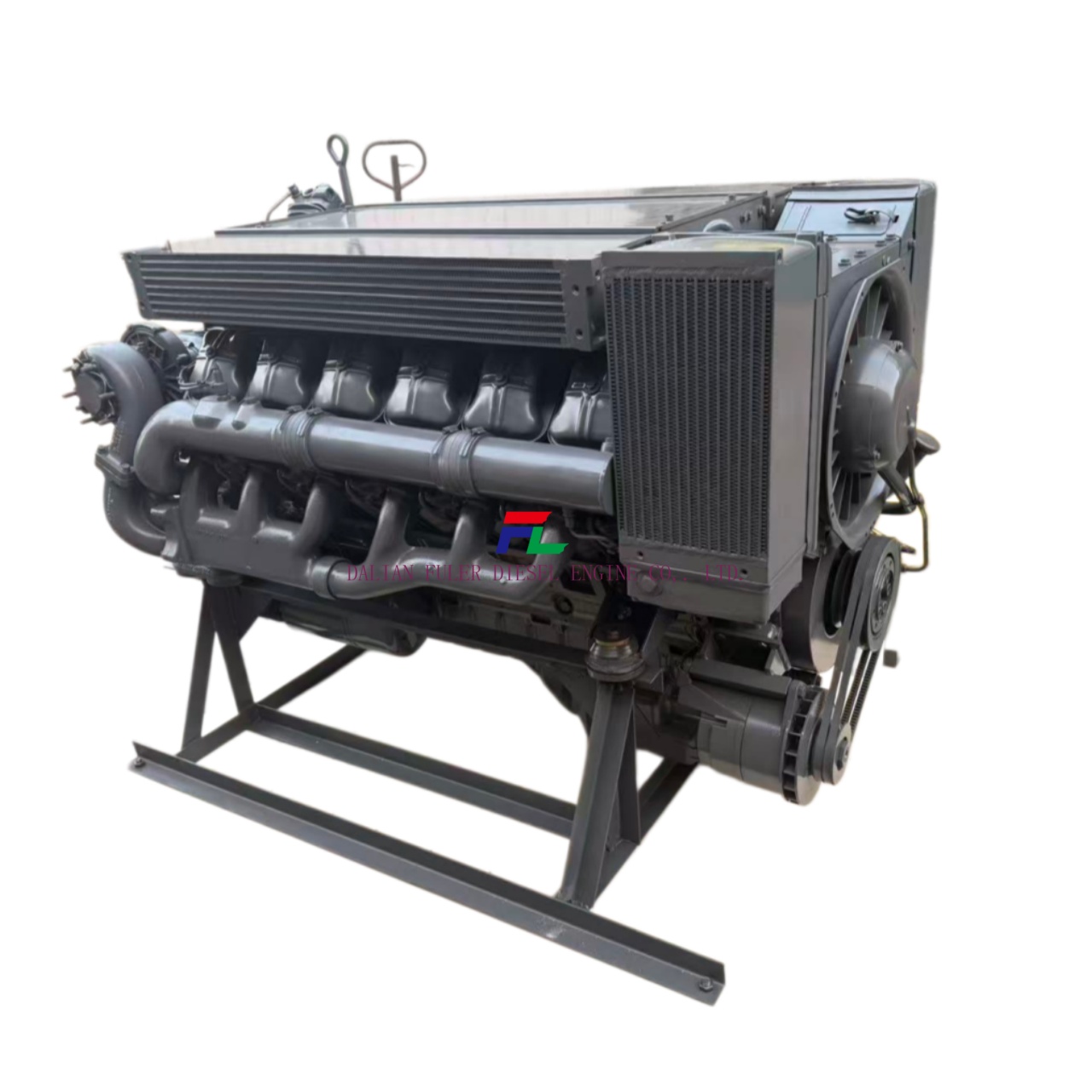

The BF12L513 belongs to the Deutz B/FL413/513 series of four-stroke, direct-injection, air-cooled diesel engines. It is a V-type, 12-cylinder configuration with a 90-degree cylinder bank angle, which contributes to compactness and smooth operation. The engine employs turbocharging and intercooling technology to enhance power output and efficiency.
Technical Specifications
* Configuration: V12, 90-degree cylinder bank angle
* Cooling System: Air-cooled
* Aspiration: Turbocharged and intercooled
* Bore x Stroke: 125 mm x 130 mm
* Displacement: 19.144 liters
* Rated Power: Typically ranges from 230 kW to 410 kW (approximately 310 to 550 horsepower), depending on the specific model and application rating. For instance, the BF12L513C variant is rated at 348 kW.
* Rated Speed: Up to 2300 rpm
* Maximum Torque: Approximately 1800 to 1900 Nm at 1500 rpm.
* Fuel Consumption: Lowest specific fuel consumption is around 210 g/kWh.
* Dimensions & Weight: Approximately 1380 mm (length) x 1590 mm (width) x 1192 mm (height), with a weight of about 1200 kg for the BF12L513C model.
Key Design Features
- Compact Layout: The 90-degree V-angle allows the cooling fan to be positioned between the cylinder banks without increasing overall height. Turbochargers are mounted above the flywheel, and intercoolers are placed above the cylinder banks.
- Robust Structure: The engine utilizes a tunnel-type (or “龙门式”) crankcase design with a reinforced main bearing cap structure secured by transverse bolts. This design enhances the crankcase’s bending and torsional rigidity, allowing for a narrower oil pan.
- Versatile Cooling: The primary cooling fan is a pressure-type unit located at the front of the engine within the V-bank. For specific applications, the design can be adapted to use a top-mounted, suction-type fan.
- Reliable Drivetrain: A helical gear train at the flywheel end drives the camshaft, fuel injection pump, and cooling fan. The oil pump is driven from the rear of the crankshaft.
- Operational Flexibility: The engine lubrication system is designed to function reliably at inclinations of up to 45 degrees in various directions.
Primary Applications
The BF12L513 engine is engineered for heavy-duty mobile equipment requiring high power density and reliability in challenging environments. Its primary applications include:
* Specialized Military Vehicles: Used as the power source for missile transport and launch vehicles.
* Large Rail Maintenance Machinery: Provides the propulsion and hydraulic power for track stabilization and other maintenance equipment.
* Engineering Machinery: Suitable for various heavy-duty construction and industrial equipment.
In summary, the BF12L513 diesel engine is characterized by its robust air-cooled V12 design, high power output, and compact, service-friendly layout, making it a proven power solution for critical heavy-duty mobile platforms.
