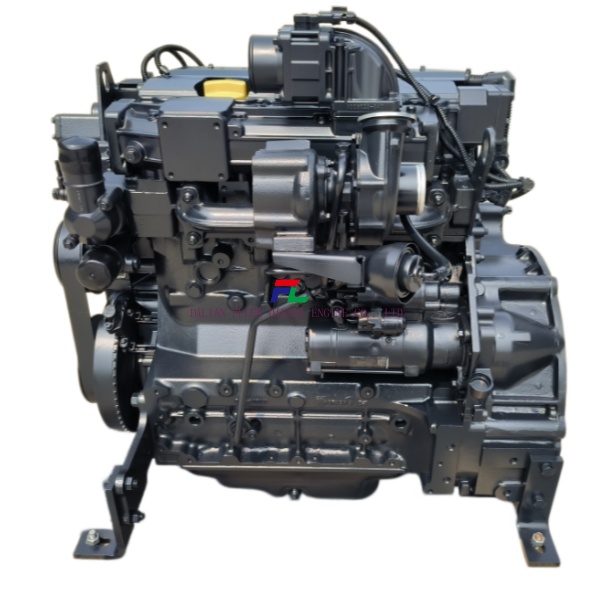

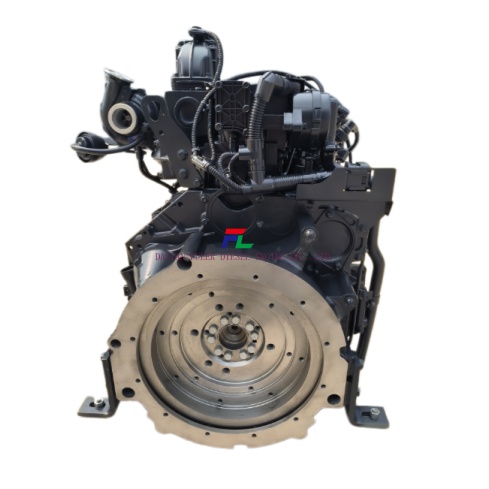

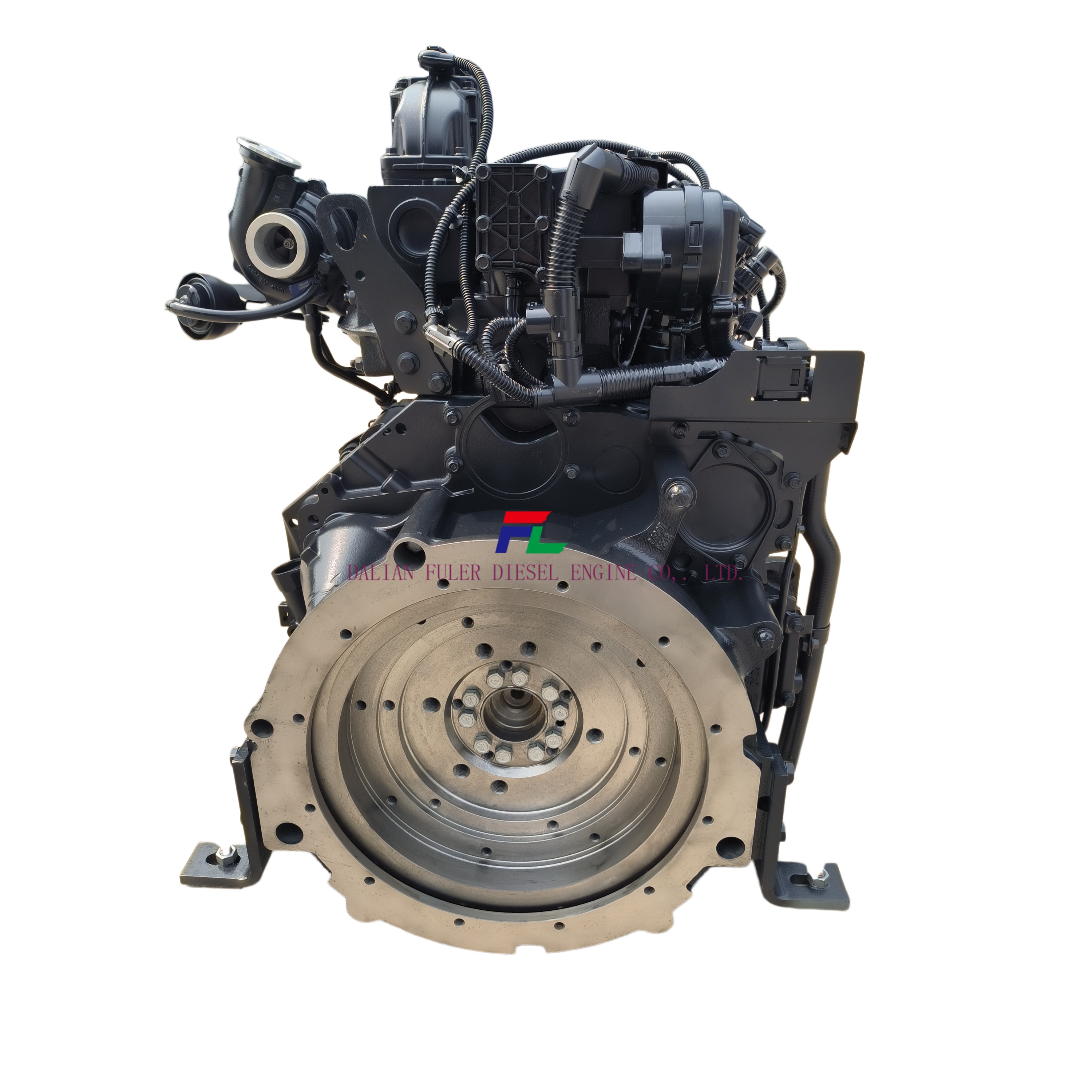

DEUTZ TCD 2012 L4 ENGINE
4-cylinder engine with inline turbocharging,oil-cooled or optionally with an integrated cooling system. Also available with water cooling and charge air cooling.
The compact engine design and an optional PTO drive reduce the installation costs and increase the number of applications.
Best cold starting properties even under extreme conditions.
The engines in the power range < 56 kW meets to the US EPA Tier 4 i.
The robust engine design allows worldwide operation even with high sulphur fuels.
All parts for maintenance on one side of the engine, long oil change intervals and easy changing of engine fluids reduce the running costs and increase the availability of the machinery.
An efficient injection system and optimized combustion ensure optimum engine performance at low consumption.
产品参数
|
TCD 2012 L4 2V |
|
|
Technical data |
|
|
Emission norms |
EU IIIA, US T3 |
|
Number of cylinders |
4 |
|
Bore |
101 mm4 in |
|
Stroke |
126 mm5 in |
|
Displacement |
4 l247 cu in |
|
Maximum nominal speed |
2400 rpm |
|
Power output |
88 kW118 hp |
|
at speeds |
2400 rpm |
|
Max. torque |
420 Nm310 lb/ft |
|
at speeds |
1600 rpm |
|
Min. idling speed |
900 rpm |
|
Specific fuel consumption |
216 g/kWh0.36 lb/hph |
|
Length |
791 mm31.1 in |
|
Width |
628 mm24.7 in |
|
Height |
823 mm32.4 in |
|
Weight |
400 kg882 lb |
