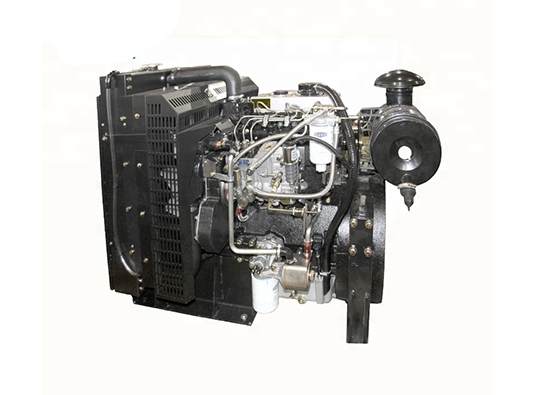

1003TG engine for generator set
- Cylinder number: 3 cylinder in line
- Cold Style: Water-cooled
- Induction system: Turbocharged
- Bore*Stroke: 100*127mm
- Displacement: 2.99L
- Usage: Generator set
Product Description:
Advantage
(1) High Power Density
More power than competitive models at close displacement, The power of 3-cylindder can reach 4-cylinder level of competitor.
(2) Lower Fuel consumption
Adopted European patent quadram combusition chamber which can reduced duel consumption, enission and noise, meanwhile Diesel engine with in-line pump for gensets raises engine power .
(3) Good performance of Cold Start
Started normally at -10°C without preheater, started smoothly at -25°C through flame preheating cold start device, meanwhile -40°C start solution is available.
(4) Stability & Reliability
Stable and reliable engine performance, good market feedback.
Technical Data:
| Model | 1003TG |
| Cylinder number | 3in line |
| Induction system | Turbocharged |
| Bore*Stroke(mm) | 100*127 |
| Displacement(L) | 2.99 |
| Compression ratio | 17.5:1 |
| Lubricating system capacity(L) | 7.48-8.68 |
| Prime power(kW/1500rpm) | 44 |
| Prime power(kW/1800rpm) | 50 |
| Standby power(kW/1500rpm) | 48 |
| Standby power(kW/1800rpm) | 55 |
| governing | 3%-5% Mechanical governing |
| Weight(kg) | 415 |
| Electrical system | Standard configuration 12V,optional 24V |

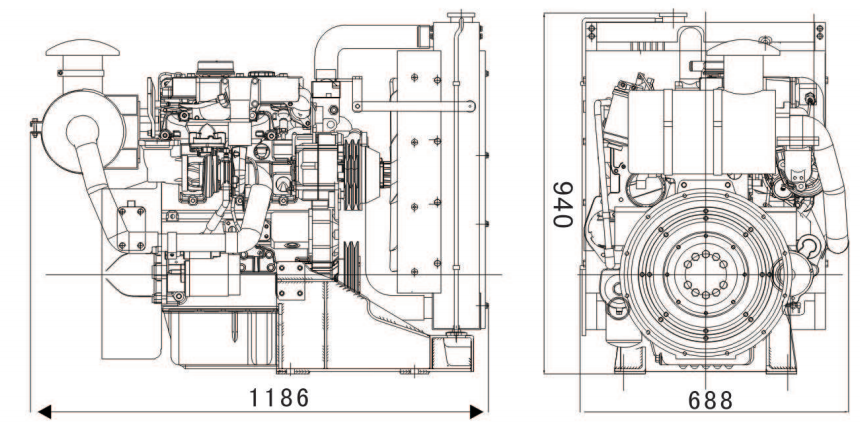

| Overall dimension | 1186*688*940mm |
