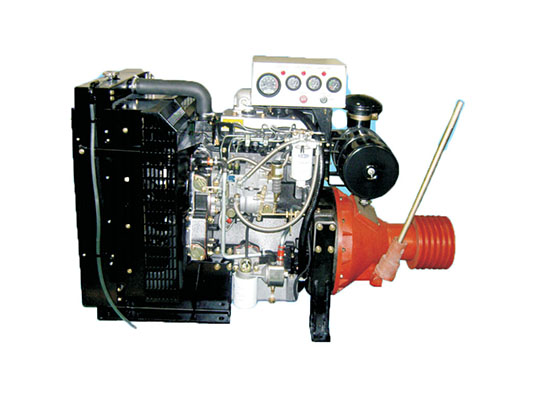

- Brand: Perkins Lovol
- Cylinder No.: 3 cylinder
- Cooling way: Water cooled
- Combustion system: Direct injection
- Displacement: 2.99L
- Usage: Water pump
- Model: 1003-3Z/ 1003-3TZ
Product advantage:
1. The engine can be easily started without the help of pre-heater at the temperature of -10℃ abd wurg the cold start aid at the temperature of -25℃.
2. With the radiator and independent fan drive, the engine can work well at an environmental temperature of 50℃.
3. The instrument control box with the function of high water temperature, low oil pressure and over-speed alarming stop, makes more convenient and reliable operation.
4. Convenient for the customers’ own installation, the air cleaner, radiator and underframe can be followed to assemble. And also the clutch can be applied according to the need of the customer.
|
Model |
1003-3Z |
1003-3TZ |
|
Cylinder number |
3 |
|
|
Cylinder arrangement |
Vertical in-line |
|
|
Rated power/1500rpm |
25kW |
36kW |
|
Rated power/1800rpm |
30kW |
45kW |
|
Induction system |
Naturally aspirated |
Turbocharged |
|
Compression ratio |
16.5:1 |
17.5:1 |
|
Bore*Stroke (mm) |
100*127 |
|
|
Displacement (L) |
2.99 |
|
|
Cycle |
4-stroke |
|
|
Combustion system |
Direct injection |
|
|
Firing order |
1,2,3 |
|
|
Governing rate |
10% |
|
|
Direction of rotation |
Clockwise viewed from fan |
|
|
Weight(kg) |
410 |
415 |
|
Overall dimensions(mm) L*W*H |
956*688*940 |
|
