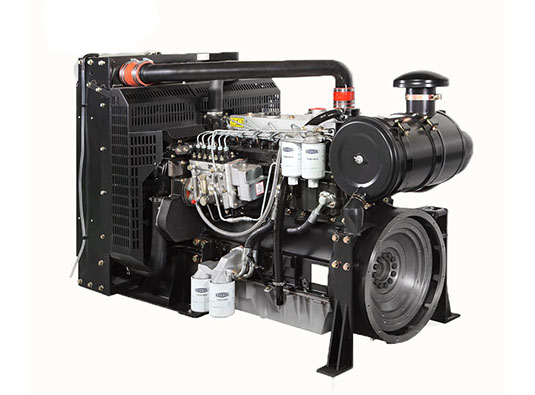

- Cylinder number: 6 cylinder in line
- Cold Style: Water-cooled
- Induction system: Turbocharged air-to-air charge cooled
- Bore*Stroke: 100*127mm
- Displacement: 5.99L
- Usage: Generator set
Advantage
(1) High Power Density
More power than competitive models at close displacement, The power of 3-cylindder can reach 4-cylinder level of competitor.
(2) Lower Fuel consumption
Adopted European patent quadram combusition chamber which can reduced duel consumption, enission and noise, meanwhile Diesel engine with in-line pump for gensets raises engine power .
(3) Good performance of Cold Start
Started normally at -10°C without preheater, started smoothly at -25°C through flame preheating cold start device, meanwhile -40°C start solution is available.
(4) Stability & Reliability
Stable and reliable engine performance, good market feedback.
Model |
1006TAG |
Cylinder number |
6 |
Cylinder arrangement |
In line |
Model |
Turbocharged air-to-air charge cooled |
Cylinder number |
100*127 |
Cylinder arrangement |
5.99 |
Induction system |
17.5:1 |
Lubricating system capacity(L) |
19 |
continuous power (kW/1500rpm) |
121 |
continuous power (kW/1800rpm) |
134 |
Max. power (kW/1500rpm) |
134 |
Max. power (kW/1800rpm) |
147 |
Electronic governing |
≤1% |
Weight(kg) |
730 |
Electrical system |
Standard configuration 12V,optional 24V |
Overall dimension (mm) |
1600*800*1064 |
